Mickala Lighting Towers
Sled Mounted – MLR7200 Long Range

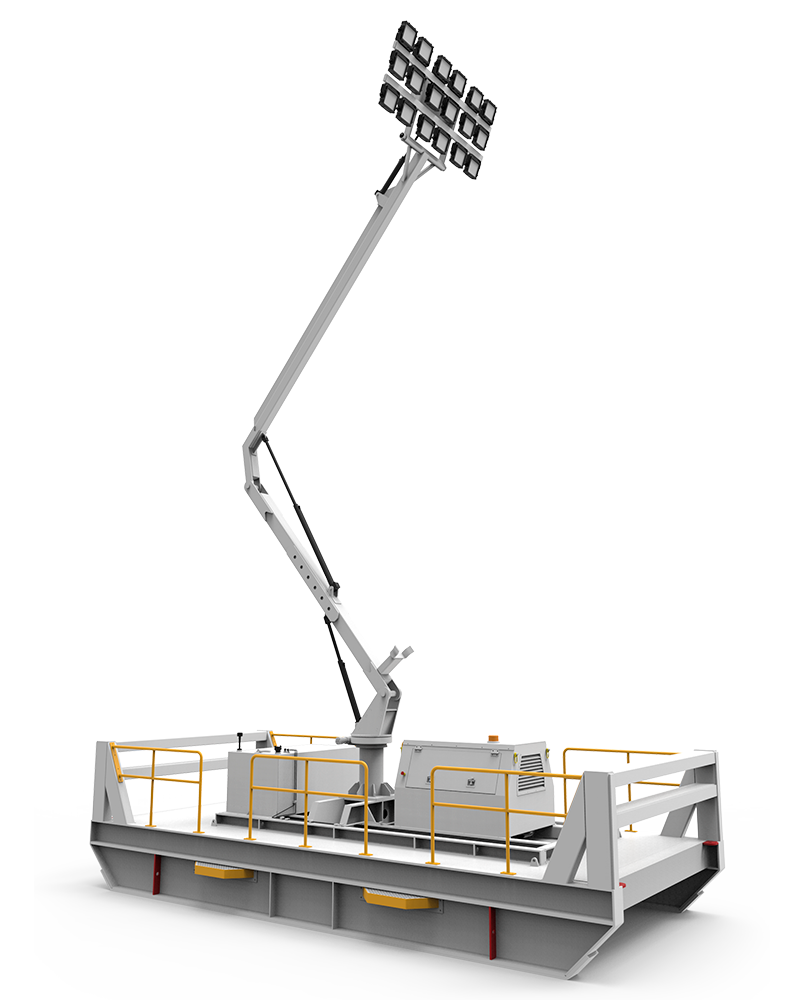

Sled Mounted MLR7200-LED

Model
MODEL MLR7200-LED Long Range
CONFIGURATION Sled Mounted
Dimensions
Width 3,170mm
Length 6,980mm
Height 3,370mm
Net Weight 12,950kg
Engine and Generator
Fuel Diesel
Engine Kubota 1703
Engine Cylinders 3
Engine Speed  1500 RPM
Engine Aspiration Natural
Exhaust lagging Standard
Oil Filtration OEM KUBOTA + REMOTE MOUNT SECONDARY SYSTEM
Air Filtration 2 STAGE AIR FILTER WITH PRE-CLEANER
Generator Brushless
Generator Voltage 24 VDC
Lights
Type of Lights LED
Lamp Wattage 400w
Lamp Life Hours 60,000
No. of Lights 18
Light Output 7,200w
Total Lumens 1,497,600
Lumens per Watt 208
Mast
Mast Height 14m
Mast Rotation 340º
Wind Rating Speed 100km/h

Jump Start Receptacle
Auto Start and Stop
Safety Valves on all Hydraulic Rams

Standard Features

Fail Safe Shutdown System
All Contaminates Fully Bunded
24VDC Extra Low Voltage System

20mm BIS80 Wear Plates
Tier IV Engines
Lockable Starter and Battery Isolators
Sled Details
Sled Base 530mm Heavy Wall I Beams
Wear Package 20mm BIS80 Wear Packages to Bottom of 530mm I Beams
Protection Plates 20mm BIS80 Wear Protection Plates to end of Push Plates
Deck 6mm Heavy Duty Checker Plate
Access steps To Comply with MDG15 – Maximum Step Height of 400mm
Handrails To Comply MDG15 all sides (Painted Yellow)
Reflective Tape 50MM Yellow on all sides. 50mm Red on Front and Rear
Tow Chains 16mm Twin Leg with Large Tow Ring
Fuel
Fuel Tank Capacity Double Wall with 1200L Capacity
Fill Point Wiggins Quick Fill
Operating Hours at 100% Load 50 x 12 hr Shifts or 600 hours (2.0L/h)
Electrical
Isolators Lockable Starter and Battery
Jump Start Recepticle Andersen Type
Beacons Amber and Red (Low Fuel)
Controller Smartgen ALC700
Hydraulics
Manifolds 1 x 12 Volt 4 Station with Test Port
Motor 2.2KW 12 Volt Fan Cooled
Filter 10 Micron on Return Circuit
Pipes CNC Bent Stainless Pipe
Hoses MDG41 With Burst Sleeve
Safety Valves Double Pilot Check Valves on all Cylinders
3 Stage Paint Process
Stage 1 Raw Steel Hydrostatically Dipped @ 180 deg Celcius
Stage 2 Primed and Seam Sealed
Stage 3 2 Pak Polyurethane (White Std) Other Colours Available
Other
Fire Extinguisher 2 x 9KG Dry Chemical Powder
Call sign 2 X As Per Customer Request
